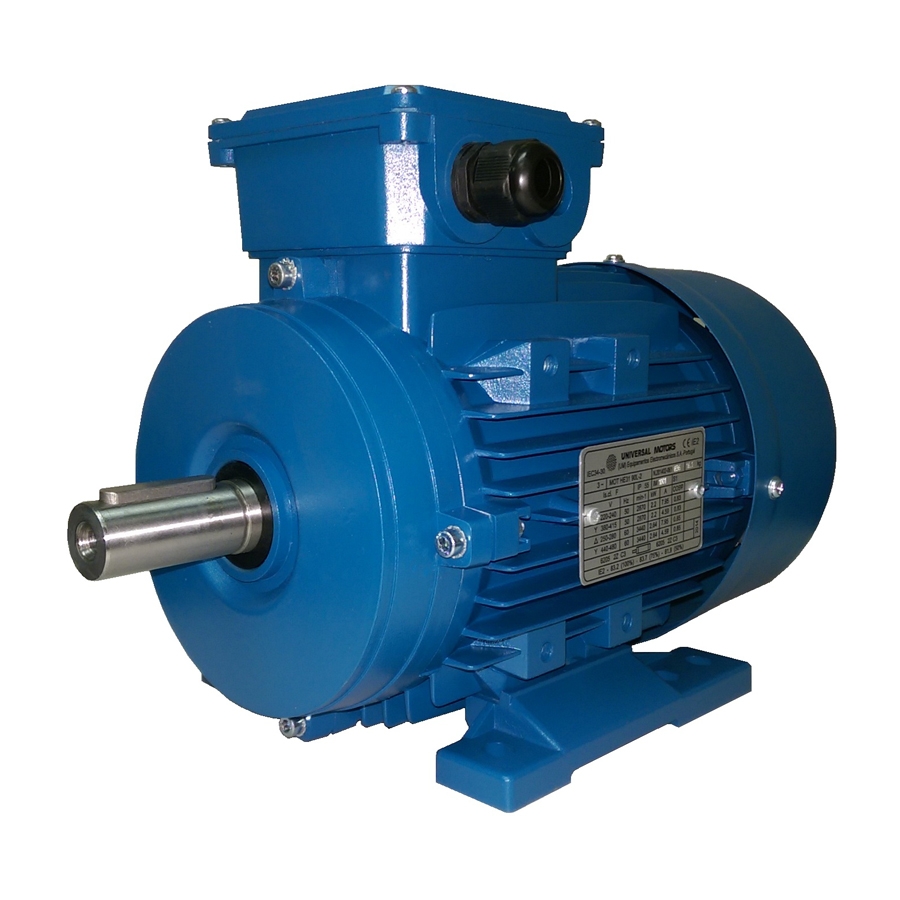

4.00 Kw, 4 Pole, IE 2* High Efficiency, 3 Phase Aluminium Electric Motor
- Available with either B3 Feet Only or B34 or B35 Foot & Flange
- 1450 RPM Running Speed (4 Pole)
- IP55 Rated Protection
- Aluminium Frame
- Can Operate On Either 50 or 60Hz Supply
- Dual Voltage, Delta (380-415v @ 50Hz / 440-480v @ 60 Hz) or Star (660-690v @ 50Hz / 660-690v @ 60Hz)
- Multi-Mount Feet
- Flange Comes Complete with Oil Seal
- Shaft Diameter: 28mm
- Dimensions: 335mm Long (Excluding Shaft) x 220mm Wide x 279mm Height
- Total Weight: 30.8 Kg
* IE 3 Available on request, please contact us for a competitive price.
Please select which mounting option you require from the above drop down menu.
For further technical information and product dimensions please download the datasheet located at the bottom of this page.
Alternatively if you need further help choosing the correct electric motor for your application then please contact us on 01706 378625 or click here to complete our online enquiry form.
