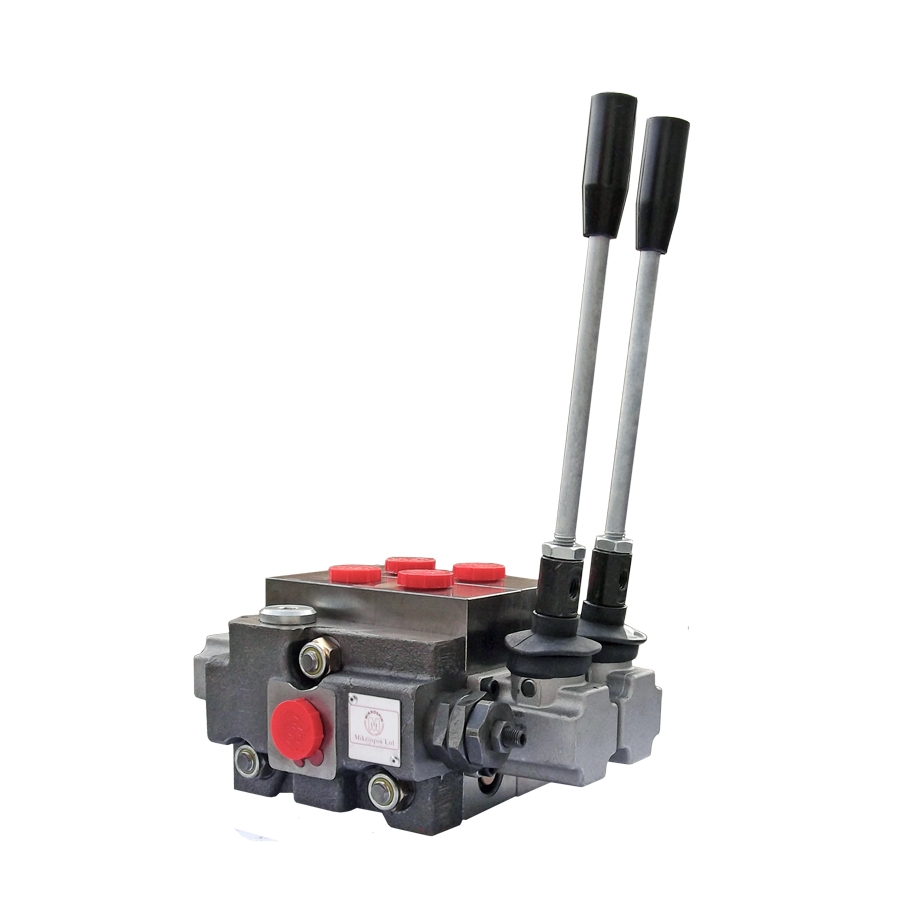

2 Bank Sectional Hydraulic Directional Control Valve with 1/2" & 3/4" Ports & Double Acting Spools
- Special High Resistance Cast Iron Body
- Suitable for High Working Pressures up to 350 Bar
- Standard Circuit in Parallel Allows Simultaneous Operations
- Interchangeable Spools (except for Q35)
- Comes Complete with Nickel Plated Double Acting Spool (Other Spools on Request)
- 3 Position Spring Centred Lever Assembly (Other Controls on Request)
- 1/2" BSP P, A & B Ports and 3/4" BSP T Ports
- 80 L/min Max Flow
- Working Temperature: -30 to 80°C
- 4 x 8mm Mounting Holes
- Dimensions: 129mm Length x 232mm Height x 100.5mm Height
Other spool and control configurations are available on request, please contact us for details.
For further technical information and product dimensions please download the datasheet located at the bottom of this page.
Alternatively if you need further help choosing the correct directional control valve for your application then please contact us on 01706 378625 or complete our online enquiry form.
